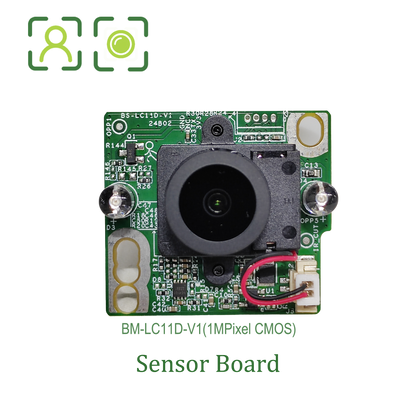

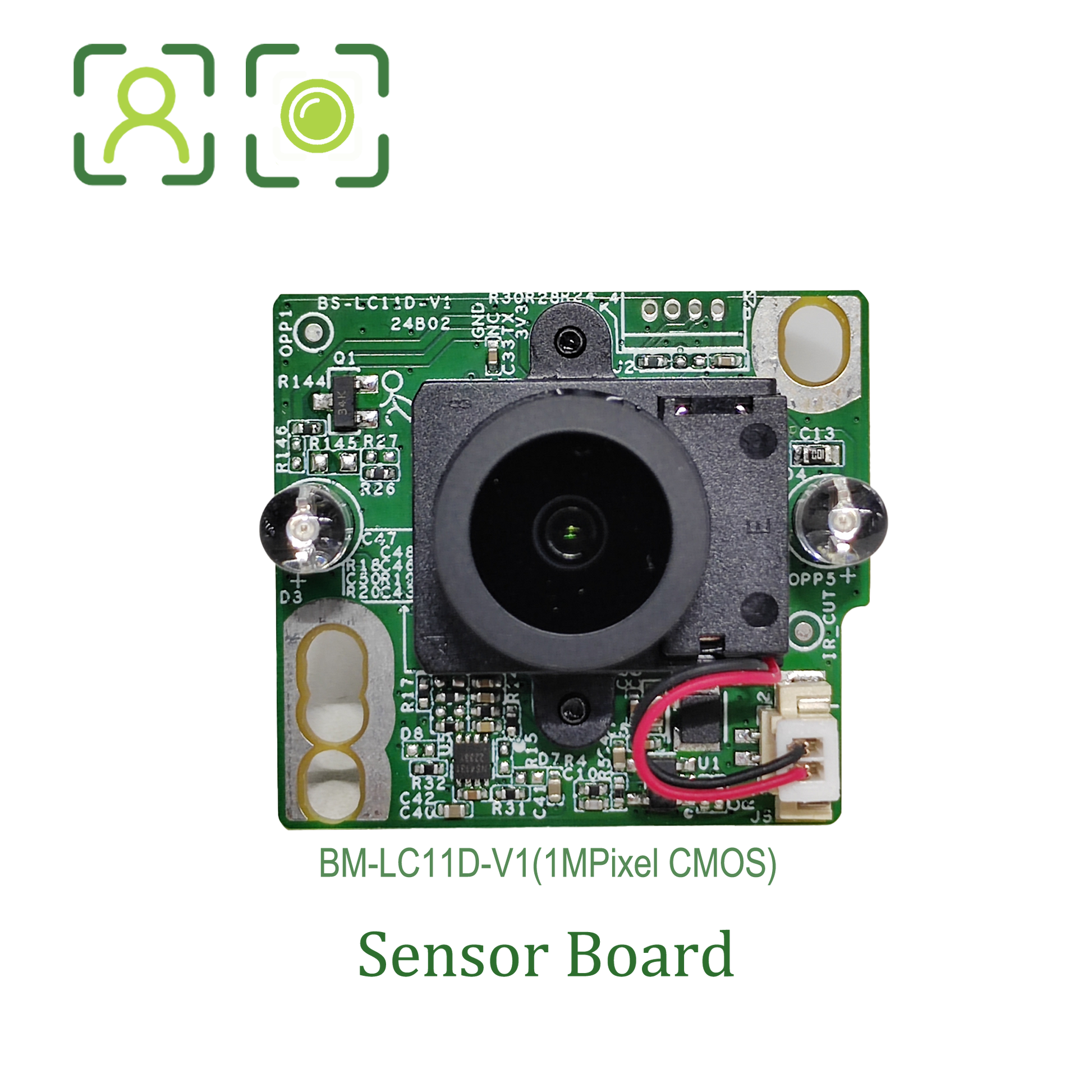

[BM-LC11D-V1 Sensor Board] 1Mpixel CMOS Sensor module; Smart Door Lock, face recognition, cat eye

[BM-LC11D-V1 Sensor Board] 1Mpixel CMOS Sensor module; Smart Door Lock, face recognition, cat eye

SNO : BK-AIBX-02-BM-LC11D-V1

$19.00
$19.00
Sale Sold out
Talk to Our Expert for Customization View full details
  1. 720P high-definition picture, mature self-developed ISP algorithm
  2. Support UVC protocol
  3. Support voice intercom
  4. Reliable hardware design, high standard production and delivery

The BM-LC11D-V1 module is a simple, easy-to-use, low-power, and cost-effective standard module product specially designed for smart door locks.

Solution:

Specification:

Hardware

Specification

Soc

AC5316

Lens

M8，TTL:11.42±0.2mm

FOV

Horizontal 116°, vertical 59°, diagonal 148° (1/4 ")

Camera Sensor

1/4 inch, 1Mpixel CMOS

SRAM

128KB

Tailline form

Standard USB sequence (4PIN/1.25mm connector)

Size

33.2mm x 30mm x 1.6mm

Temperature

-25°~70°

fill-in light

2 infrared fill lights (850mm)

ICR DSS /ICR

Automatic infrared filter switching

Transport protocol

UVC
